SUB-ANGSTROM VIBRATION ISOLATION & ENVIRONMENTAL STABILITY

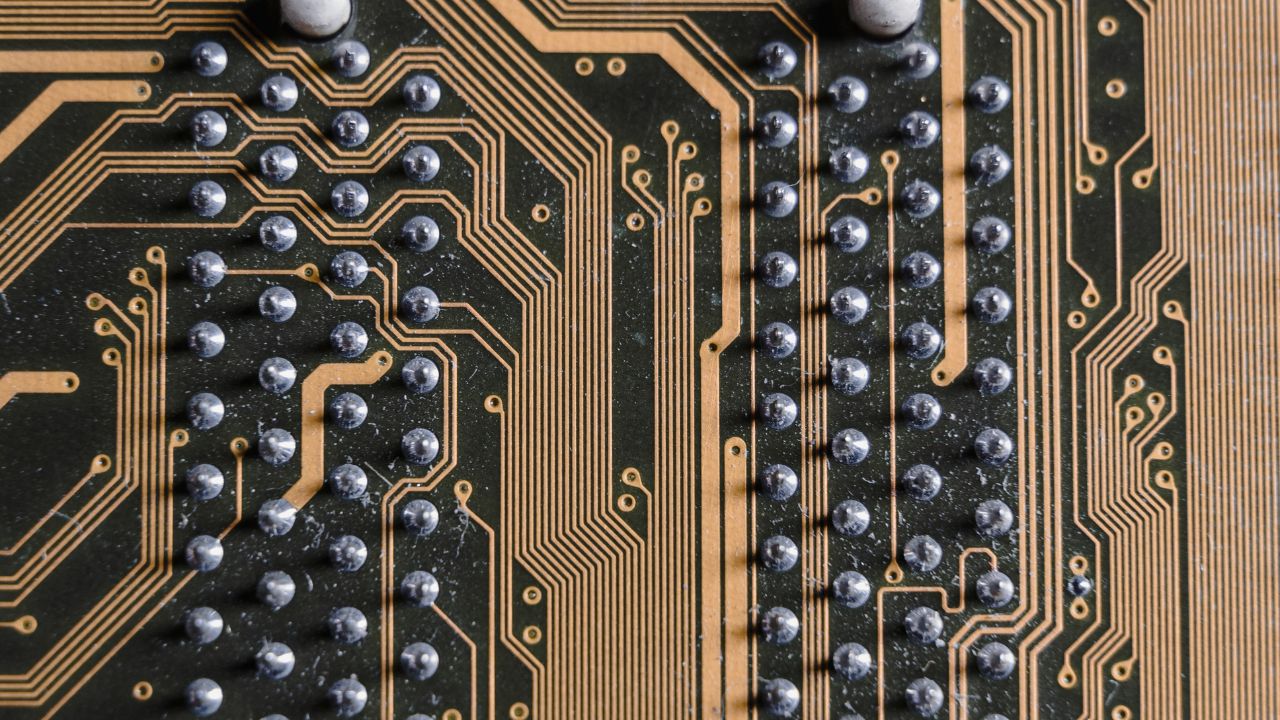

Close-up Photo of a Printed Circuit Board

Nanotechnology research and fabrication operate at the absolute limits of physics. At the atomic scale, environmental disturbances are magnified exponentially. From Atomic Force Microscopy (AFM) to Electron Beam Lithography, the slightest structural vibration, low-frequency acoustic wave, or thermal fluctuation can cause beam drift, ruin nanoscale pattern fidelity, and obscure topographical data. Maya Consulting engineers the extreme multi-physics isolation required to achieve sub-angstrom stability, protecting your multi-million dollar instrumentation and ensuring reproducible quantum-level breakthroughs.

Atomic Force Microscopy (AFM) & Scanning Probe Systems

High-resolution scanning probe microscopes are hyper-sensitive to external kinetic energy. Achieving true atomic resolution requires an environment free from both structural micro-seismicity and ambient acoustic interference.

  • The Data Risk: Even imperceptible floor vibrations or standard laboratory HVAC noise can translate into mechanical resonance at the probe tip, completely obscuring nanoscale features and rendering critical measurement data useless.

  • The Engineering Solution: We design ultra-low frequency active and passive isolation platforms, coupled with specialized acoustic enclosures, to achieve sub-angstrom performance and consistently meet extreme VC-F and VC-G vibration criteria.

Nanofabrication & Molecular Beam Epitaxy (MBE)

Direct-write electron beam systems and MBE thin-film deposition are complex, multi-hour processes. They demand absolute environmental continuity—where vacuum systems, thermal management, and structural stability must function in perfect, isolated harmony.

  • The Fabrication Risk: Low-frequency acoustic noise and structural vibrations cause severe beam drift and pattern distortion during nanolithography. In MBE processes, this kinetic interference disrupts crystalline growth, introducing critical defects into quantum structures.

  • The Engineering Solution: We engineer dedicated structural decoupling strategies (such as isolated concrete massive inertia blocks) for your heaviest UHV equipment, while designing acoustic treatments that mitigate ambient noise without compromising the strict particulate controls of a Class 10 nanofabrication cleanroom.
  •

FAQ

COMMON QUESTIONS ABOUT NANOFACILITY ENVIRONMENTAL CONTROL

While standard laboratories might operate at VC-A, advanced nanotechnology facilities typically require VC-E (125 micro-inches/sec) to VC-G (31 micro-inches/sec) performance. Scanning Tunneling Microscopes (STMs) and high-end e-beam lithography tools often demand sub-angstrom stability. We perform precision site baseline testing to engineer the exact structural mass and isolation systems needed to reach these extreme thresholds.

Absolutely. Low-frequency soundwaves behave as pressure waves that strike the outer casing of the vacuum chamber. This acoustic energy transfers into mechanical vibration, traveling to the electron column and causing beam drift. We design specialized acoustic enclosures that lower the ambient noise to <20 dB, protecting the nanometer-scale accuracy of the beam.

Nanotech equipment requires massive cooling capability, but chilled water lines and HVAC pumps introduce severe mechanical vibration into the lab. We utilize specialized spring mounts, inertia bases, and flexible pipe coupling to isolate the thermal management infrastructure, breaking the kinetic transmission path before it reaches your sensitive tools.

It is possible, but it requires rigorous engineering. Rather than pouring entirely new decoupled foundations, we can often implement advanced active-cancellation piezoelectric isolation platforms and localized acoustic shielding to upgrade an existing space to meet stringent nanoscale vibration criteria.

ACHIEVE TRUE ATOMIC-SCALE PRECISION
